How deep can a pushback lane go?

Two to six pallets deep is the practical range. Lanes beyond four deep only pay off if you consistently hold that many pallets per SKU - we size lane depth from your inventory profile, not by maxing out the rail.

How does push back racking compare to drive-in rack?

Both store deep from one face. With pushback the forklift stays in the aisle and gravity does the work, which is faster and gentler on the structure. Drive-in goes deeper and costs less per position, but the driver has to enter the lane to place and pull loads.

Will my drivers need retraining?

Barely any. Loading is closer to selective racking than to drive-in - square up in the aisle, set the pallet, let the cart take it. Most crews are comfortable within a shift.

What load capacities are available?

Cart and rail assemblies are commonly rated 2,500 to 4,000 lb per pallet, with heavier configurations available. We specify to your heaviest pallet with margin and hand over ratings for the finished lane.

We are outgrowing our current layout. Can you tear it down and reconfigure it?

Yes — reconfiguring an existing system is common. We measure what is there, note the manufacturer and connection style, and redesign the layout around your current pallet mix before scheduling a teardown and rebuild.

Will new pushback rack tie into rack we already have?

Usually. We identify the manufacturer, connector style, and frame profile from photos or measurements first, then design the addition so it matches your current aisle pattern instead of creating a second standard in the building.

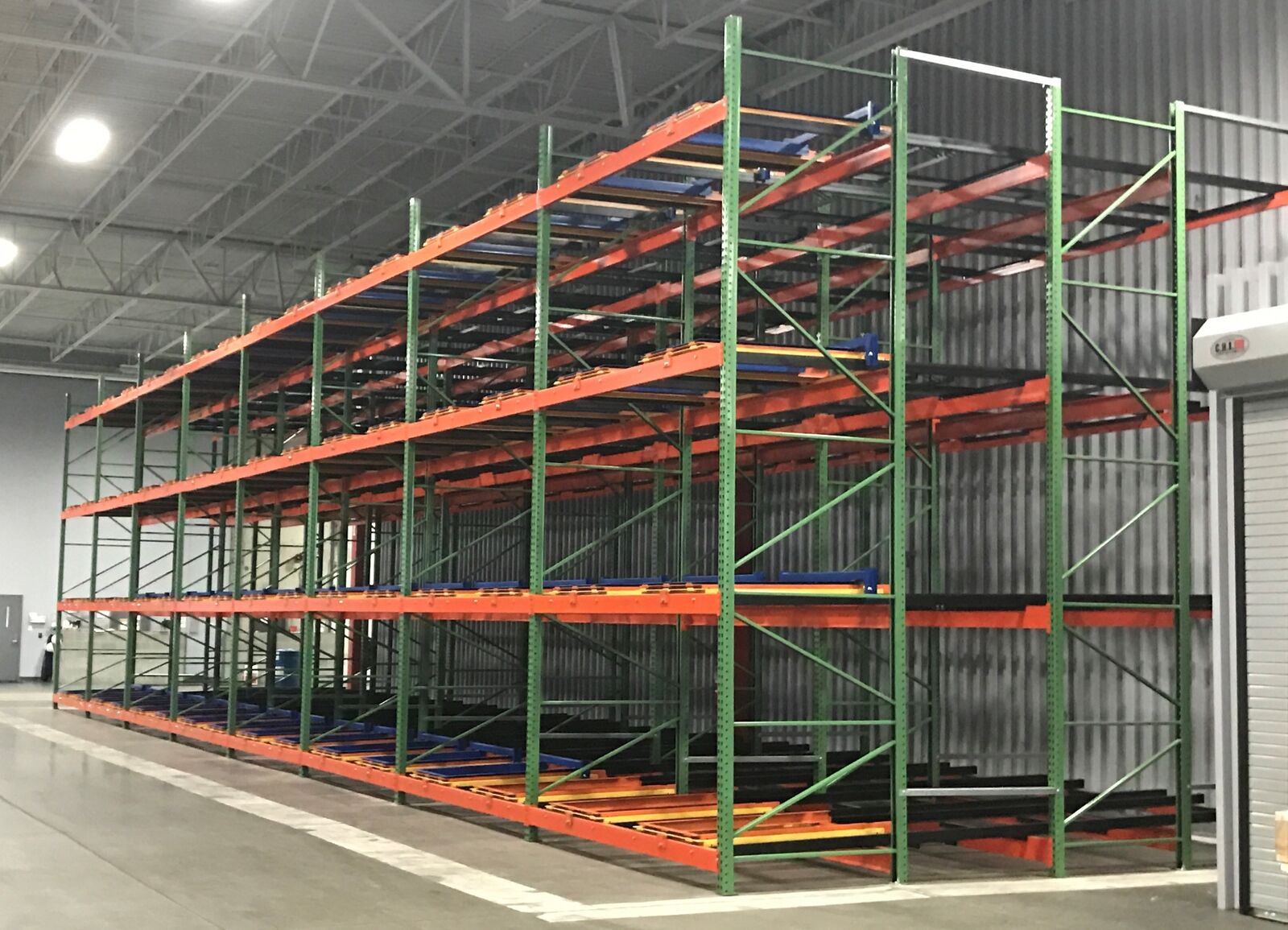

Pushback Rack system inside a Ohio warehouse

Cincinnati, Ohio

Pushback Rack for Cincinnati, Ohio Warehouses

Name: Cincinnati Pallet Racks - Cincinnati
Address: 2345 Ashland Ave., Cincinnati, OH, 45206, US
Telephone: (513) 957-3017
Price range: $$

Most food & beverage distribution and 3pl and warehousing operations in Cincinnati outgrow the layout before they outgrow the building, usually starting with the same SKU stored in five different places because the rack is only one deep. Pushback Rack is the system we reach for when the floor is full but the air above Lower Price Hill racks is not.

We size the push back rack systems around your pallets, your lift trucks, and the clear height in your Queensgate building, factoring in density added without pushing out a building wall. You get a drawing and a line-item price for the Queensgate site, not a rough estimate. Call (513) 957-3017 and we will start a Cincinnati layout.

(513) 957-3017

Why Cincinnati Warehouses Work With Us

Cincinnati operators mixing food & beverage distribution with 3pl and warehousing usually need one part of the floor dense and another part fully selective. That split is exactly where pushback rack tends to earn its keep near Camp Washington.

As part of Warehouse Equipment & Supplies Co., we have designed storage for food & beverage distribution and consumer products operators around Lower Price Hill since 1997 — enough history that fewer aisles maintained for the same forklift fleet rarely surprises us mid-project.

You also get one point of contact for the whole Cincinnati pushback rack project. The same person who draws the layout quotes the steel, schedules delivery around your Queensgate dock, and handles replacement parts two years from now.

Free warehouse consultation

CAD layout with position counts

Installation by trusted installation partners

Operations We Rack Around Here

Nearby areas we work in regularly include Queensgate, Lower Price Hill, Camp Washington, Bond Hill.

Food & beverage distribution

3PL and warehousing

Consumer products

Machine shops

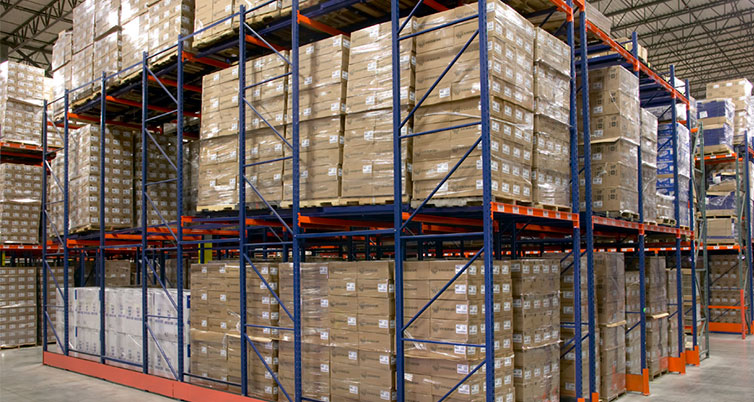

High-density pushback rack lanes loaded with pallets

Pushback pallet racking showing cart rails and load beams

How Pushback Rack Works

Two to six pallets deep from one aisle, without giving up much reach.

Loading from the aisle

The driver sets the first pallet on the front cart. Each pallet added after that pushes the cart train deeper into the lane, so one aisle handles the whole depth.

Carts nested on rails

Steel carts with nylon or steel wheels ride inclined rails, each nesting under the one ahead of it - that nesting is what makes multi-deep storage possible from a single face.

Retrieval by gravity

Pull the front pallet and the next cart rolls forward on the incline to the pick face. No driving into the lane, no repositioning pallets by hand.

Last in, first out

Each lane runs LIFO. That suits fast-turning product and any operation managing rotation by lane rather than by individual pallet date.

What a Pushback Rack Project Includes

A pushback rack quote for Cincinnati starts from measurements, not assumptions — clear height, slab condition, dock access, pallet weights, and which SKUs turn daily versus monthly.

The deliverable is a pushback rack drawing and a priced bill of material: positions, elevations, aisle widths, and capacities for your Lower Price Hill building. Since the design turns on fewer aisles maintained for the same forklift fleet, we normally include a denser alternative on the same plan so the food & beverage distribution tradeoff is explicit.

Common pushback rack items ship from stock, and we stage deliveries to match your Queensgate dock. Installation partners set and anchor the system to the Cincinnati drawing, verify it loaded, and tag capacities. Work is sequenced zone by zone so Cincinnati receiving and shipping never stop, and we stay reachable for pushback rack parts, added lanes, and repairs.

Two to six pallets of the same SKU stacked in one lane

Cold storage or leased space where rent per square foot is steep

Operations trimming aisle count to add positions

Beverage, packaging, and consumer goods runs

Buildings with clear height to spare but limited floor

Call (513) 957-3017

Recent Installations

Racking projects completed for warehouses across Southwest Ohio and Northern Kentucky.

View More Projects

Get a Pushback Rack Quote for Your Cincinnati Warehouse

Send the basics and we will follow up with a layout and pricing. Prefer to talk it through? Call (513) 957-3017.
